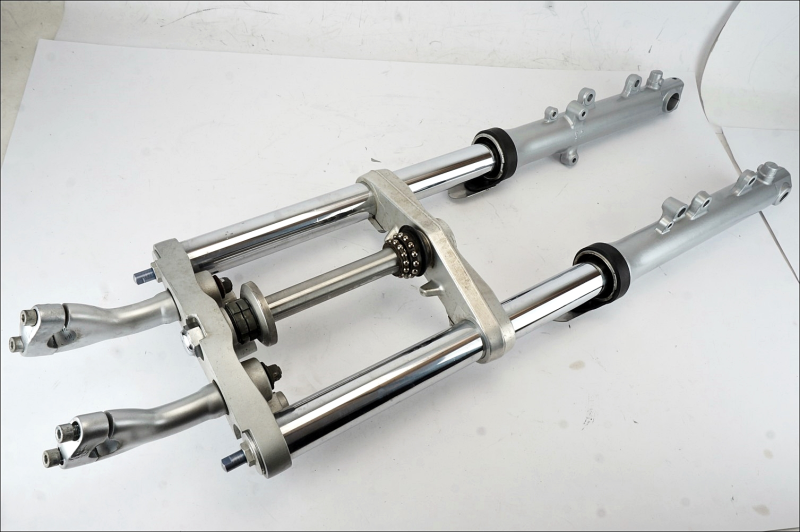

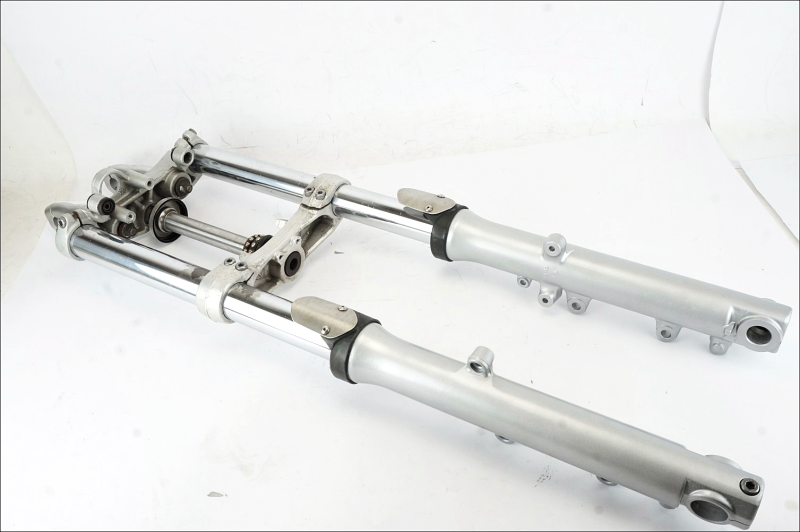

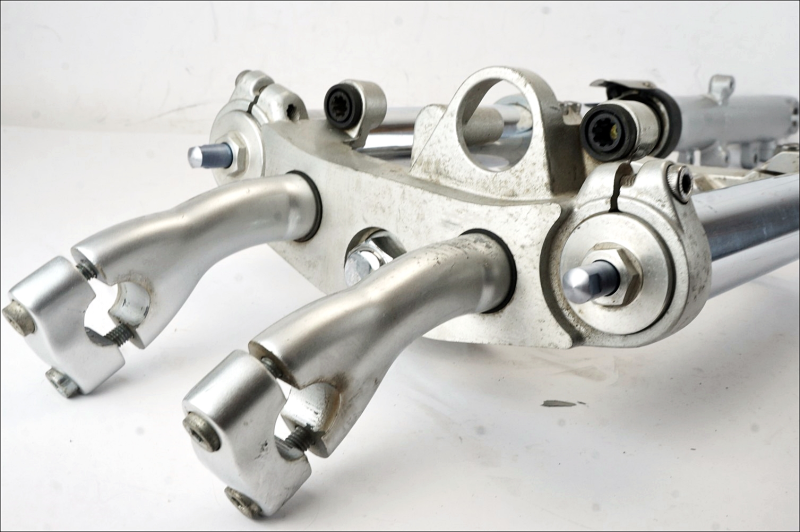

YAMAHA BT 1100 Bulldog 02 06 Fork with original triple trees and risers

Vehicle Data Sheet
________________________________________
• TYPE: Naked
• BRAND: Yamaha
• MODEL: BT 1100 Bulldog
• DISPLACEMENT: 1,063 cc
• YEAR OF 1ST REGISTRATION: 2002
• APPLICATION: 2002-2006
• FRAME CODE: ZD0RP051000003019
• ENGINE CODE: YAMAHA P610E
• KM: 24,182 (recorded by the instrumentation installed on the vehicle during disassembly)
• KW: 47.8 kW

Product Data Sheet
________________________________________
• CONDITION: Used
--------------
• DEFECTS TO REPORT: Signs of wear

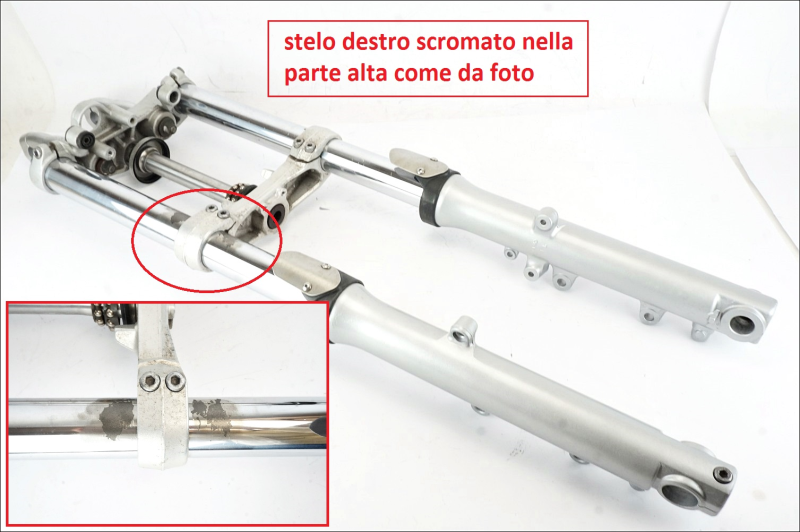

• SPECIAL CONDITIONS: Right fork leg Chrome-plated at the top as shown in the photo
• BRAND: Original
Material: Steel and aluminum

Diameter of the riser mounting holes: 22mm
Overall length: 80cm
Steer tube length: 21cm
Steer tube diameter: lower part 32mm; Central part 26mm; upper part 26mm
Stem diameter: 43mm
Diameter of the front fender mounting holes: 6mm
Longitudinal distance between the front fender mounting holes, center to center: 7cm
Diameter of the axial caliper mounting holes: 10mm
Distance between the axial caliper mounting holes, center to center: 10cm
Diameter of the front axle passage hole: 18mm Threaded part: 18mm Bushing part: 28mm

Product intact with signs of use, right stem is chrome-plated at the top, as shown in the photo.
________________________________________
N.B.
BOLTS AND BRACKETS NOT INCLUDED IF NOT VISIBLE IN THE PHOTO
All the part numbers for the item are visible in the photos in the ad.
We do not use sample images; what is visible in the photos reflects the actual item.
