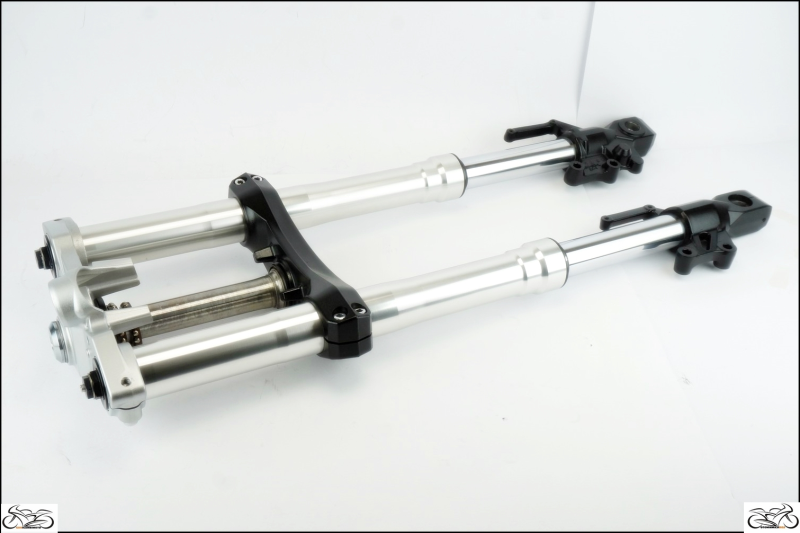

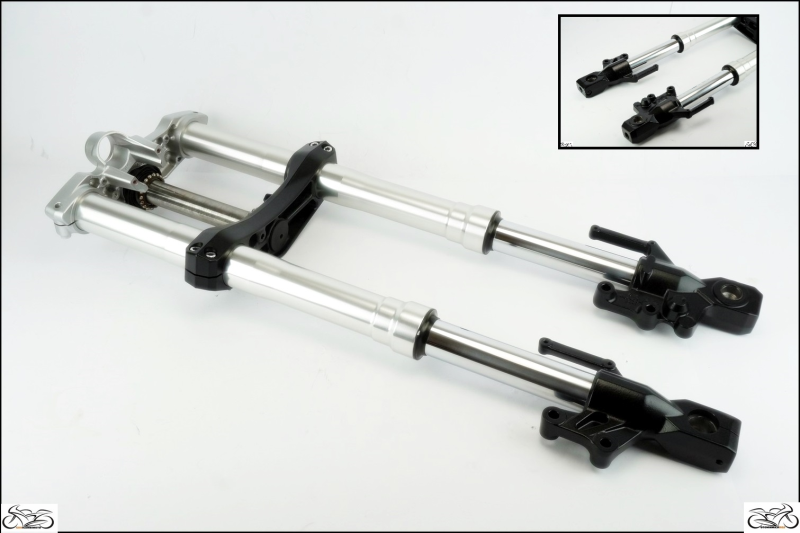

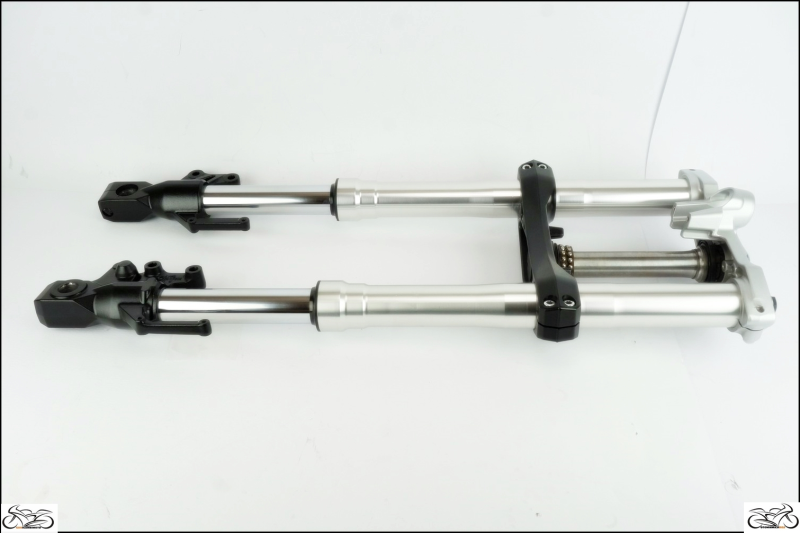

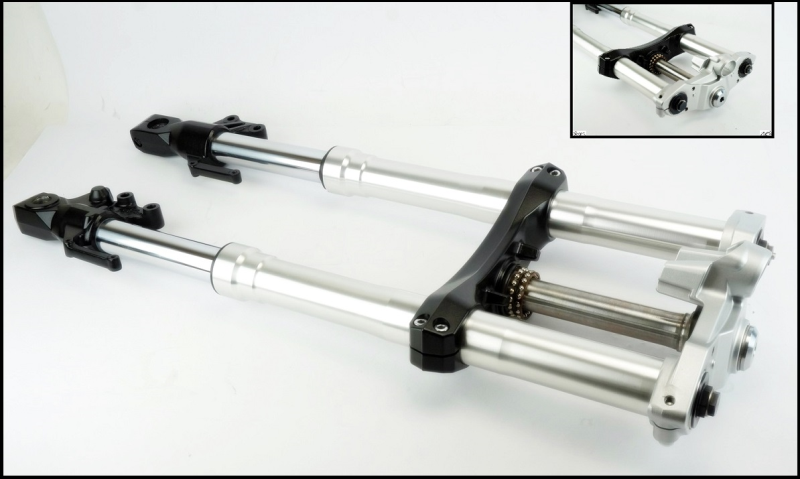

Fork with original plates Kawasaki Versys 650 2006 2009

Vehicle card
________________________________________
• TYPE : Tourism
• MAKE : Kawasaki
• MODEL : Versys 650
• DISPLACEMENT : 649cc
• 1st YEAR OF ENROLLMENT: 2007
• APPLICATION : 2006 2009
• FRAME CODE: JKALE650AAA004276
• ENGINE CODE: ER650AE
• KM : 28,903
• KW: 47

Product details
________________________________________
• CONDITION : used
• CHARACTERISTICS : good condition, ready for installation
• DEFECTS TO REPORT: signs of wear
• SPECIAL CONDITIONS : none
• BRAND : original
• MATERIAL : steel and aluminium
________________________________________
Overall length: 81.7cm
Sleeve length: 20cm
Steerer diameter: 33mm
Stem diameter: 41mm
Diameter of the axial connection caliper fixing holes: 10mm
Distance between the axial connection caliper fixing holes from center hole to center hole: 5.5cm
Diameter of the front fender fixing holes: 5mm
Distance between the front fender fixing holes from center hole to center hole: 7cm
Diameter hole for front axle shaft bushing part: 25mm threaded part: 19mm
Stem passage hole diameter: 52mm
Top plate code: 2C K1840-2
Bottom plate code: 71K K1840
Left leg code: K184-00-L SA-1
Right leg code: K184-00-R SA-1

Product with signs of use and slight fading
_______________________________________
NB
All the codes relating to the advertised object are visible in the photos in the ad,
we do not use sample images, what is visible in the photo reflects reality
