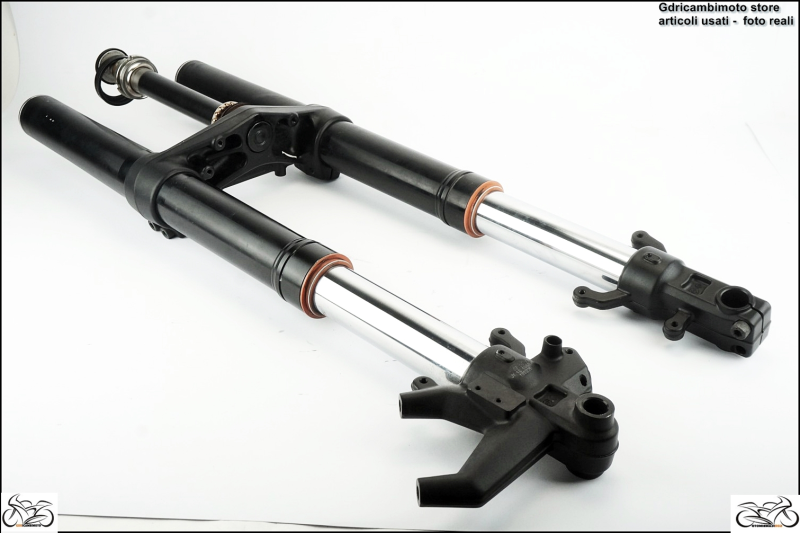

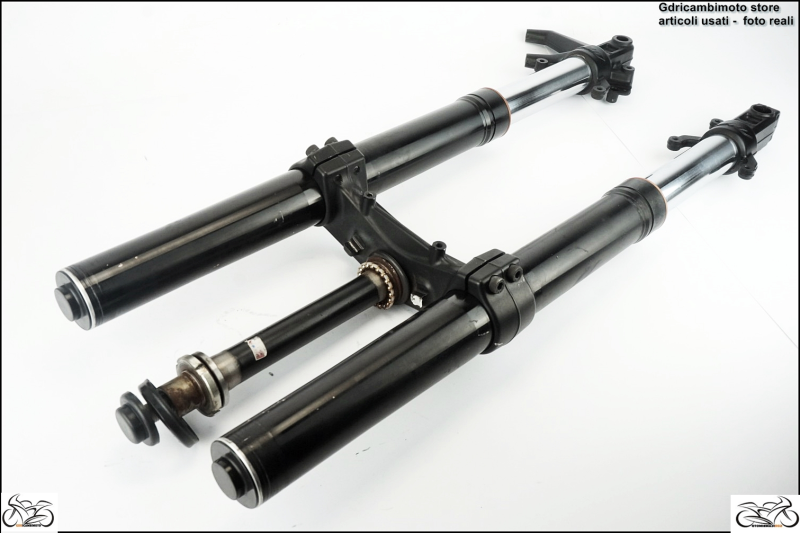

original fork with bottom plate KTM RC 125 ABS 17 20

Vehicle card
________________________________________
• TYPE: Sports
• BRAND: KTM
• MODEL: RC 125
• DISPLACEMENT: 124.7 cc
• YEAR I REGISTRATION: 2017
• APPLICATION: 2017 2020
• FRAME CODE: VBKJYA400HC078607
• ENGINE CODE: 7-935*10558*
• KM : 27,630
• KW: 11 kW

Product details
________________________________________
• CONDITION : used
• FEATURES: good condition, ready for installation
• DEFECTS TO REPORT: small scratches as shown in the photo
• SPECIAL CONDITIONS: none
• BRAND: Original WP
• MATERIAL: steel and aluminium
________________________________________
Overall length: 76cm
Stem diameter: 43mm
Tube length: 22cm
Stem diameter: 28mm
Diameter of the front pin axis passage hole diameter of the bushing part: 20mm
Diameter of the non-bushed front pin axle passage hole diameter: 15mm
Front mudguard fixing hole diameter: 5mm
Radial connection caliper fixing hole diameter: 7mm
Distance between the radial connection caliper fixing holes from center hole to center hole: 8cm
Stem code:JY 12 1060/01

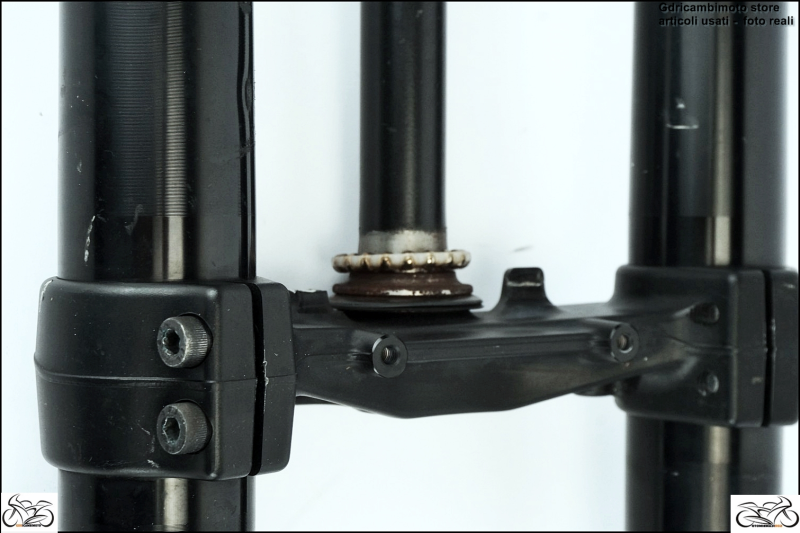

Bottom plate code: 90101031035

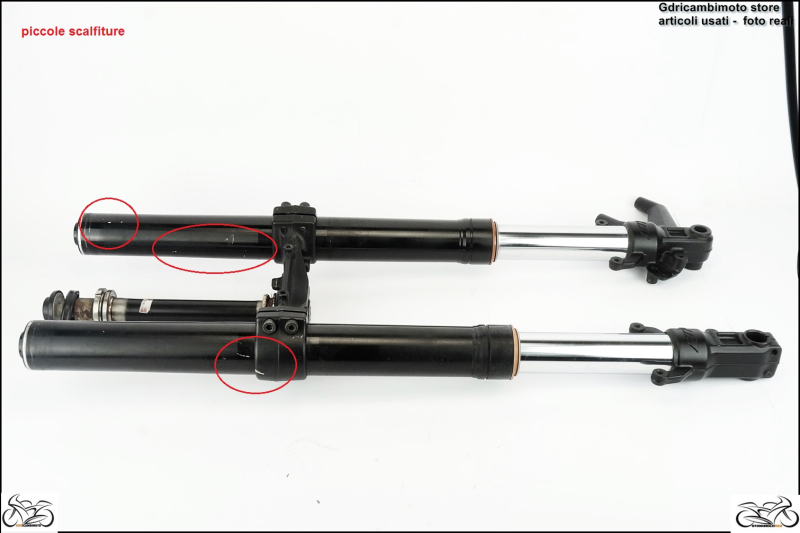

Product intact and straight but with small scratches as shown in the photo
________________________________________
N.b.
All codes relating to the advertised object are visible in the photos in the advert,
we do not use sample images, what is visible in the photo reflects reality
?
