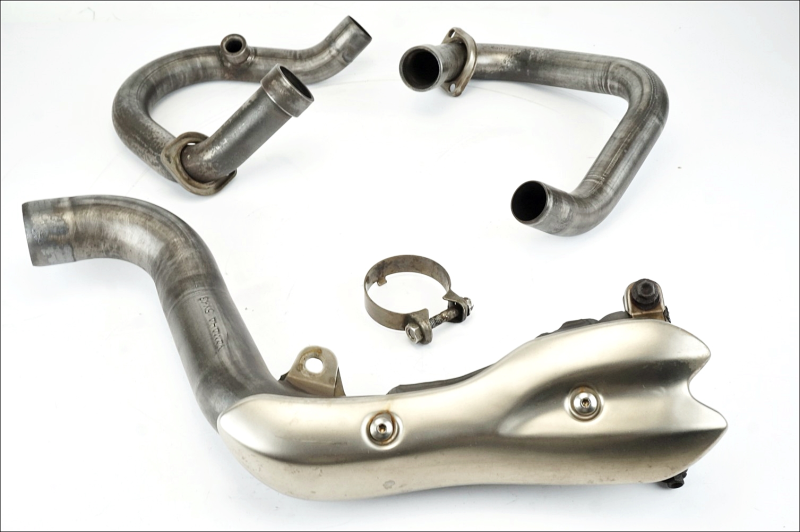

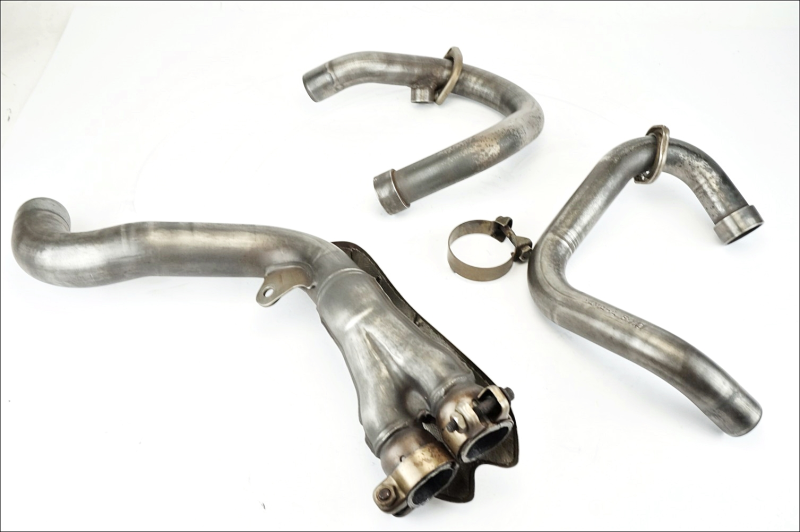

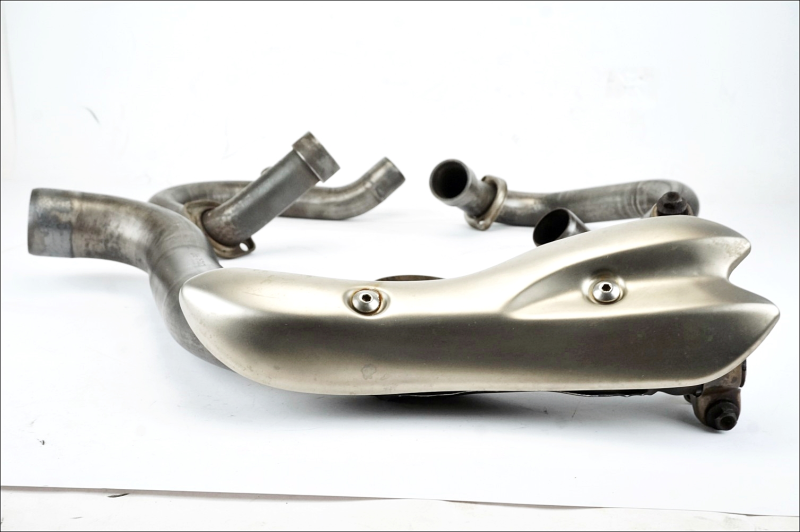

exhaust manifolds with original heat shields Yamaha MT 03 660 06 14

Vehicle data sheet
________________________________________
• TYPE: Supermotard
• BRAND: Yamaha
• MODEL: MT-03
• DISPLACEMENT: 660 cc
• YEAR OF 1ST REGISTRATION: 2010
• APPLICATION: 2006 - 2014
• ENGINE CODE: M309E
• FRAME CODE: ZD0RM024000025317
• KM: 24,708
• KW: 35 kw

Product data sheet
________________________________________
• CONDITION: used
---------------------
• DEFECTS TO REPORT: signs of wear
• SPECIAL CONDITIONS:
• BRAND: Original
Material: aluminum
Quantity: 3

Collector 1:
Inlet diameter: 35mm
Outlet diameter: 31mm
Overall length: approximately 60cm
Lambda probe connection thread diameter: 18mm
Diameter of flange fixing holes: 9mm
Distance between flange fixing holes from center hole to center hole: 5.8cm
Collector 2:
Inlet diameter: 35mm
Outlet diameter: 30mm
Overall length: approximately 59cm
Diameter of flange fixing holes: 9mm
Distance between flange fixing holes from center hole to center hole: 5.8cm

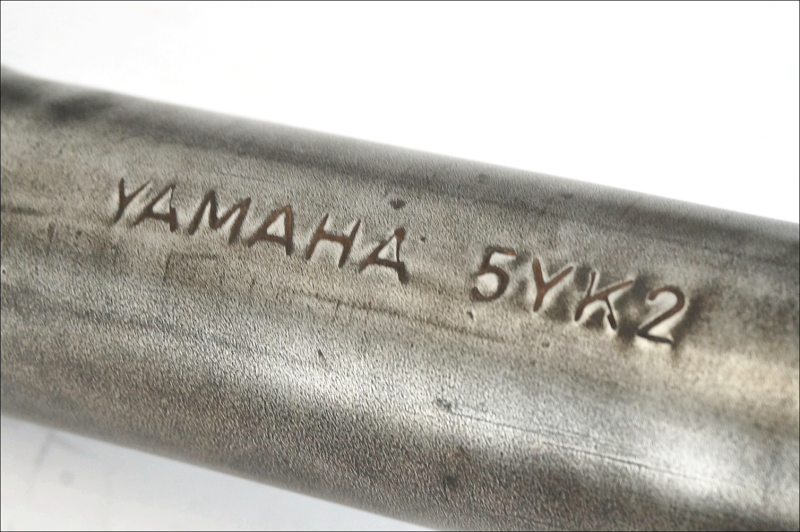

Code: YAMAHA 5YK2
Collector 3:
Overall length: approximately 56cm
Inlet diameter: 41mm
Outlet diameter: 45mm
Fixing hole diameter: 9mm
Code: YAMAHA 5YK3
Products intact with signs of use, complete of the relative heat shield

________________________________________
N.b.
All codes relating to the item advertised are visible in the photos in the ad,
we do not use sample images, what is visible in the photo reflects reality

Fast Shipping

---
