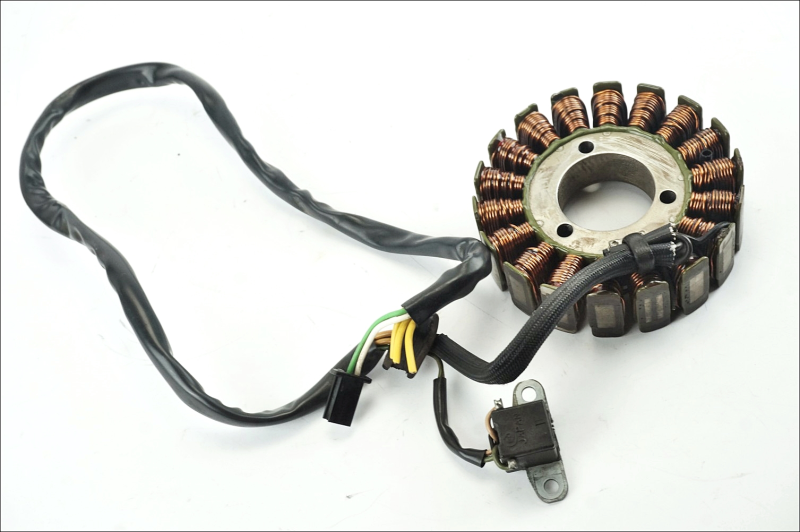

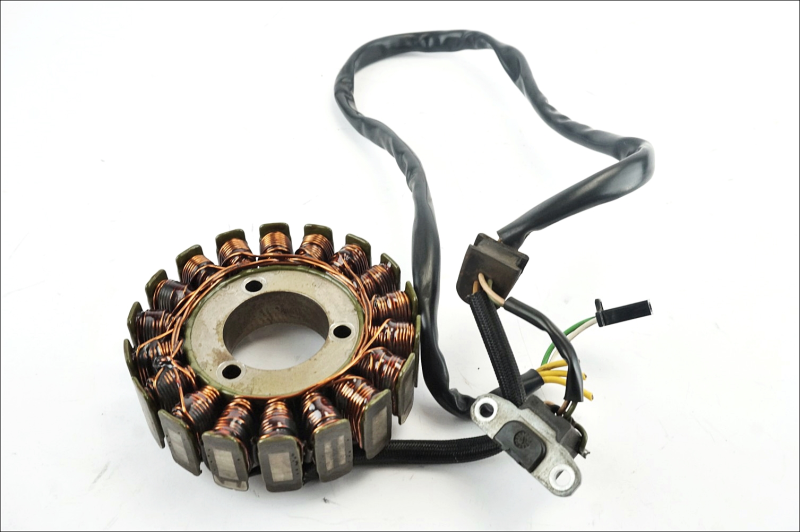

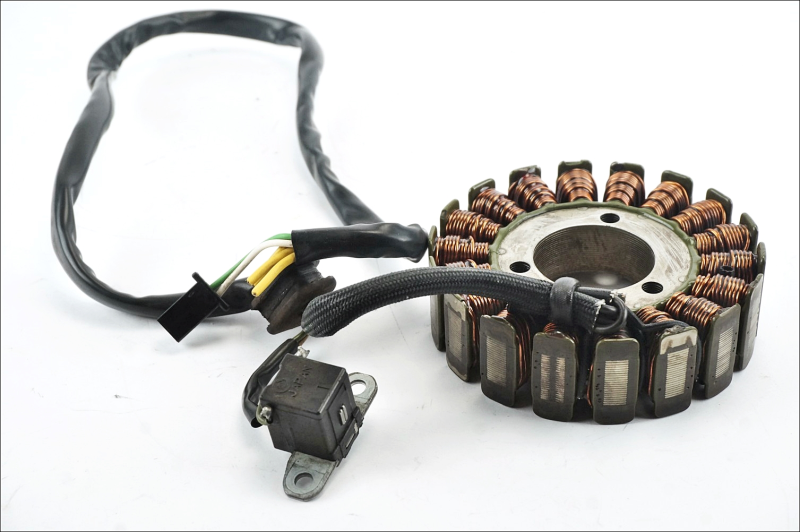

original magneto stator Suzuki SV 650 99 02

Vehicle data sheet
________________________________________
• TYPE: Naked
• BRAND: Suzuki
• MODEL: SV650
• DISPLACEMENT: 645 cc
• YEAR OF 1ST REGISTRATION: 2001
• APPLICATION: 1999 - 2002
• FRAME CODE: JS1AV133100116825
• ENGINE CODE: P503
• KM: 27,168
• KW: 52 kW

Product data sheet
________________________________________
• CONDITION: used
-----------------------
• DEFECTS TO REPORT: signs of wear, broken pin as shown in the photo
• SPECIAL CONDITIONS: none
• BRAND: original
• MATERIAL: plastic, copper and steel
________________________________________
Diameter of the stator fixing: 6mm
Interaxis between stator fixing holes from center hole to center hole: 4cm
Outer diameter of stator: 10.2cm - internal: 35mm
Stator thickness: 3cm

1 black 2-pin plug
1 sheared plug
Cable length: approximately 60cm
Stator code: OF
Diameter of pick up fixing holes: 6mm
Interaxis of pick up fixing holes from center hole to center hole: 3.5cm

Product with signs of use and slight discoloration, sheared plug as shown in the photo
________________________________________
N.b.
All codes relating to the item listed are visible in the photos in the advert,
we do not use sample images, what is visible in the photo reflects reality
