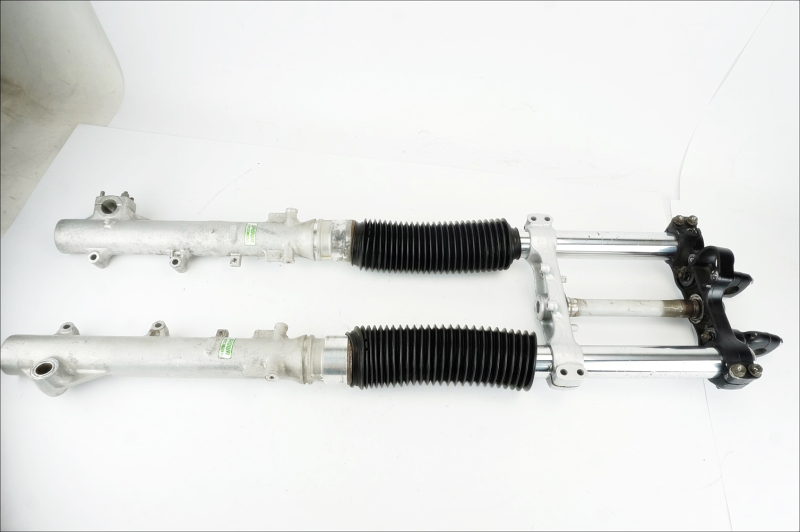

fork with original double disc plates Honda Transalp XL 600 V 97 99

Vehicle sheet
________________________________________
• TYPE: Road Enduro
• BRAND: Honda
• MODEL: Transalp XL 600 V
• DISPLACEMENT: 583.2 cc
• YEAR OF 1ST REGISTRATION: 1997
• APPLICATION: 1997 1999
• FRAME CODE: ZDCPD10A0WF100264
• ENGINE CODE: HM PD06E
• KM: 26,102
• KW: 37 kW

Product sheet
________________________________________
• CONDITION: used
-------------

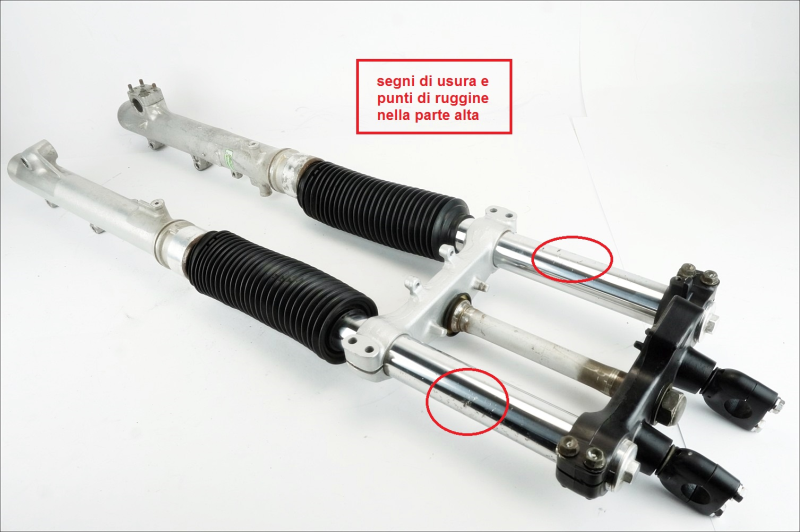

• DEFECTS TO REPORT: signs of wear and rust spots on the upper part
• SPECIAL CONDITIONS: DOUBLE DISC VERSION, ALSO MOUNTABLE ON 650
• BRAND: SHOWA
• MATERIAL: aluminum and steel
________________________________________
Head riser diameter: 22mm
Overall length: 89.5cm
Head tube length: 19cm
Head tube diameter: 26mm
Stem diameter: 41mm
Diameter of the axial attachment caliper fixing holes: 8mm
Distance between the axial attachment caliper fixing holes from center hole to center hole: 11cm
Diameter of the front axle passage hole: bushed part: 22mm threaded part: 16mm
Diameter of the front mudguard fixing holes: 5mm
Right stem code: MAW-R SA-1
Left stem code: 8M04 MAW-L SA-1

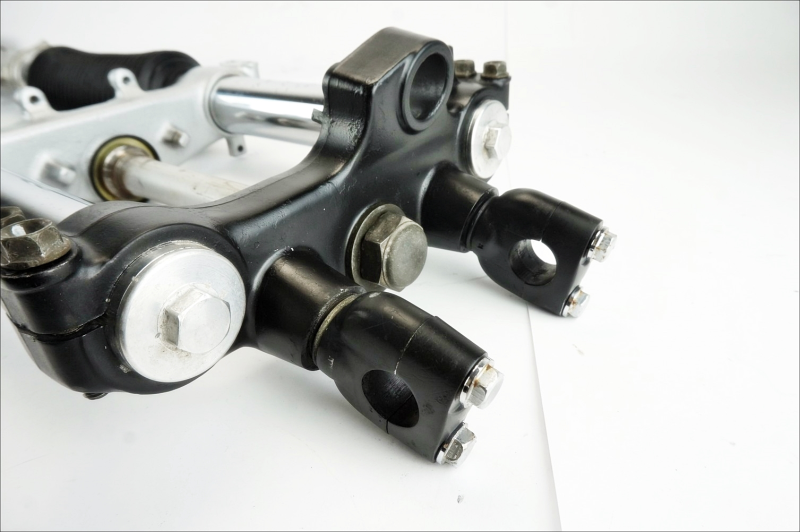

Lower plate code: CA
Upper plate code: MANF 7

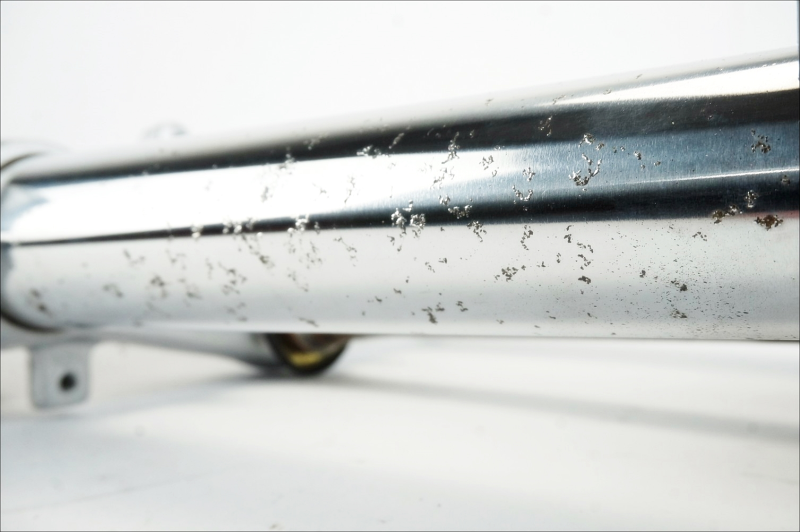

Product with signs of use and rust spots on the upper part
________________________________________
N.b.
All codes relating to the item advertised are visible in the photos in the ad,
we do not use sample images, what is visible in the photo reflects reality
