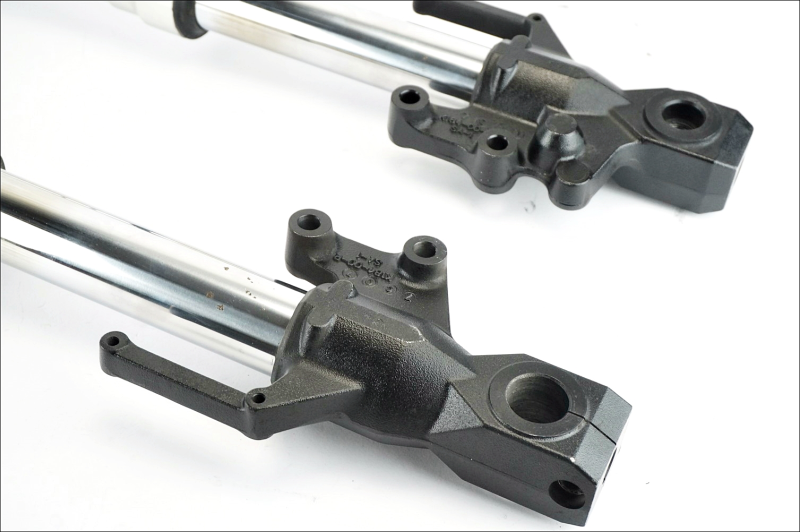

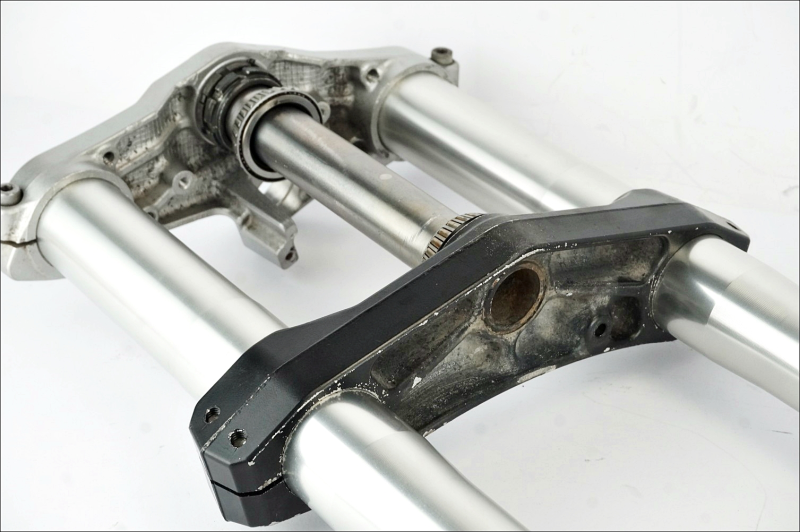

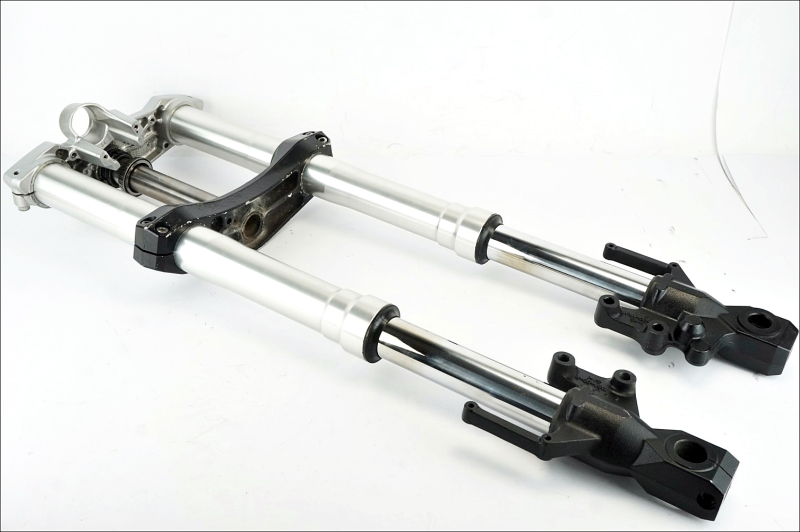

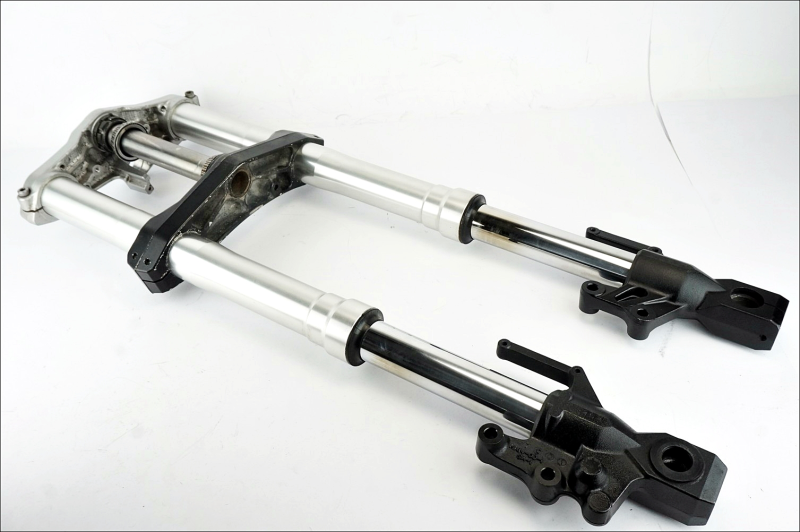

Fork with original plates Kawasaki Versys 650 06 09

Vehicle data sheet
________________________________________
• TYPE: Tourism
• BRAND: Kawasaki
• MODEL: Versys 650
• DISPLACEMENT: 649cc
• YEAR OF 1ST REGISTRATION: 2008
• APPLICATION: 2006 2009
• FRAME CODE: JKALE650AAA013135
• ENGINE CODE: ER650AE
• KM: 39,213 (detected by the instrumentation installed on the vehicle during the disassembly phase)
• KW: 47 Kw

Product data sheet
________________________________________
• CONDITION: used
----------
• DEFECTS TO REPORT: signs of wear
• SPECIAL CONDITIONS: none
• BRAND: original
• MATERIAL: steel and aluminum
________________________________________
Overall length: 81.7cm
Steer tube length: 20cm
Steer tube diameter: 33mm
Steer tube diameter: 41mm
Diameter of the axial attachment caliper fixing holes: 10mm
Distance between the axial attachment caliper fixing holes from center hole to center hole: 5.5cm
Diameter of the front fender fixing holes: 5mm
Distance between the front fender fixing holes from center hole to center hole: 7cm
Diameter of the front pin axle passage hole, bushed part: 25mm, threaded part: 19mm
Diameter of the stem passage hole: 52mm
Upper plate code: 2C K1840-2
Lower plate code: 71K K1840
Left stem code: K184-00-L SA-1
Code right stem: K184-00-R SA-1

Product intact and straight with signs of use
_______________________________________
N.b.
All codes relating to the item advertised are visible in the photos in the ad,
we do not use sample images, what is visible in the photo reflects reality
