Fork with original plates Malaguti Spidermax GT 500 04 07

Vehicle data sheet
________________________________________
• TYPE: High Wheel Scooter
• BRAND: Malaguti
• MODEL: Spider Max GT 500
• DISPLACEMENT: 459 cc
• YEAR OF 1ST REGISTRATION: 2005
• APPLICATION: 2004 2007
• CHASSIS CODE: ZJM7101A271004417
• ENGINE CODE: M341M
• KM: 30,102 (detected by the instrumentation installed on the vehicle during the disassembly phase)
• KW: 29

Product data sheet
________________________________________
• CONDITION: used

• DEFECTS TO REPORT: signs of wear
• SPECIAL CONDITIONS: none
• BRAND: original
• MATERIAL: aluminum and steel
________________________________________
Overall length: 73cm
Riser fixing hole diameter: 22mm
Steering tube length: 20cm
Steering tube diameter: 25mm
Stem diameter: 41mm
Axial attachment caliper fixing hole diameter: 8mm
Axial attachment caliper fixing hole distance from center hole to center hole: 10cm
Front axle pin passage hole diameter: threaded part: 13mm bushing part: 22mm.
Left stem code: 417.540 J10
Right stem code: 404.870 110
Upper plate code: 109050 10-05
Lower plate code: 1156600

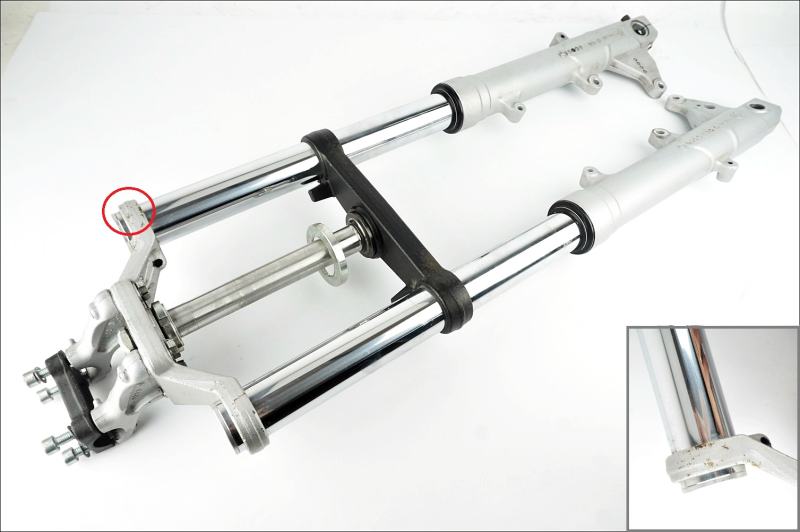

Product with signs of use and slight discoloration
________________________________________
N.b.
All codes relating to the item listed are visible in the photos in the ad,
we do not use sample images, what is visible in the photos reflects reality
