original exhaust manifolds YAMAHA MT 03 660 06 14

Vehicle data sheet
________________________________________
• TYPE: Supermotard
• BRAND: Yamaha
• MODEL: MT 03
• DISPLACEMENT: 660 cc
• YEAR OF 1ST REGISTRATION: 2007
• APPLICATION: 2006 2014
• FRAME CODE: ZD0RM024000004475
• ENGINE CODE: YAMAHA M309E
• KM: 16,022 (detected by the instrumentation installed on the vehicle during the disassembly phase)
• KW: 35 kw

Product data sheet
________________________________________
• CONDITION: used
---------------------
• DEFECTS TO REPORT: signs of wear
• SPECIAL CONDITIONS: complete with the relevant heat shield and fastening clamps
• BRAND : Original
Material: aluminum
Collector 1:
Inlet diameter: 35mm
Outlet diameter: 31mm
Overall length: approximately 60cm
Lambda probe connection thread diameter: 18mm
Diameter of flange fixing holes: 9mm
Distance between flange fixing holes from center hole to center hole: 5.8cm
Collector 2:
Inlet diameter: 35mm
Outlet diameter: 30mm
Overall length: approximately 59cm
Diameter of flange fixing holes: 9mm
Distance between flange fixing holes from center hole to center hole: 5.8cm
Code: YAMAHA 5YK2
Collector 3:
Overall length: approximately 56cm
Inlet diameter: 41mm
Outlet diameter: 45mm
Fixing hole diameter: 9mm

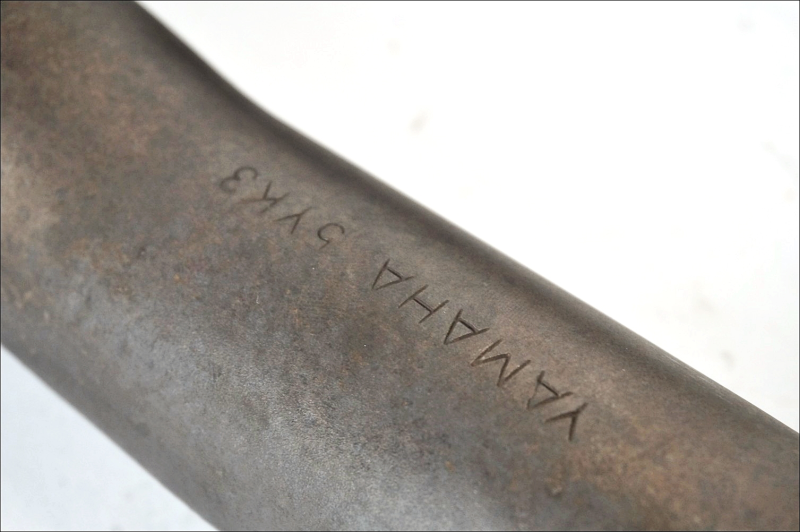

Code: YAMAHA 5YK3

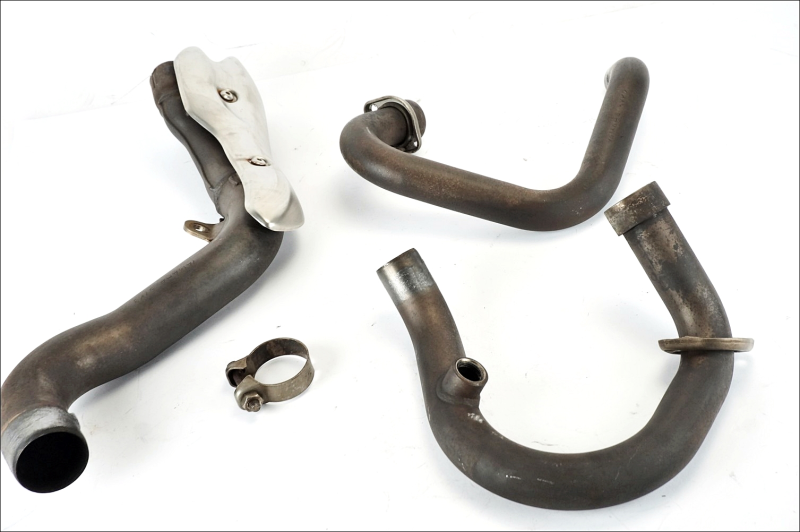

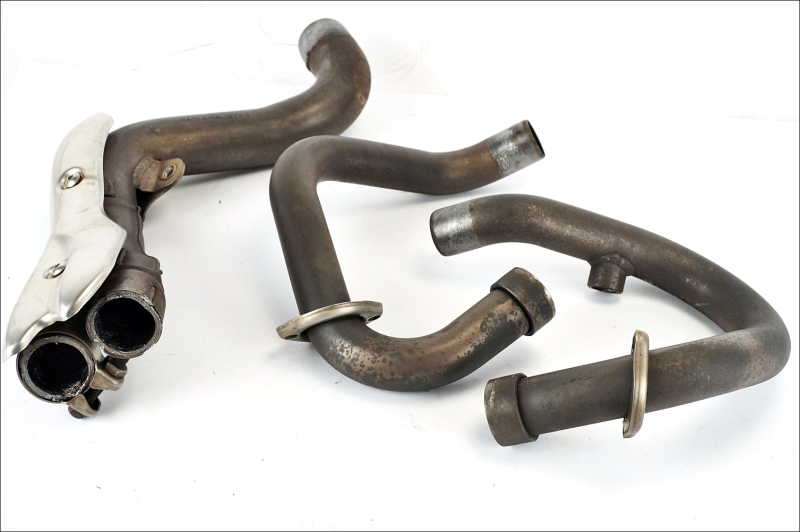

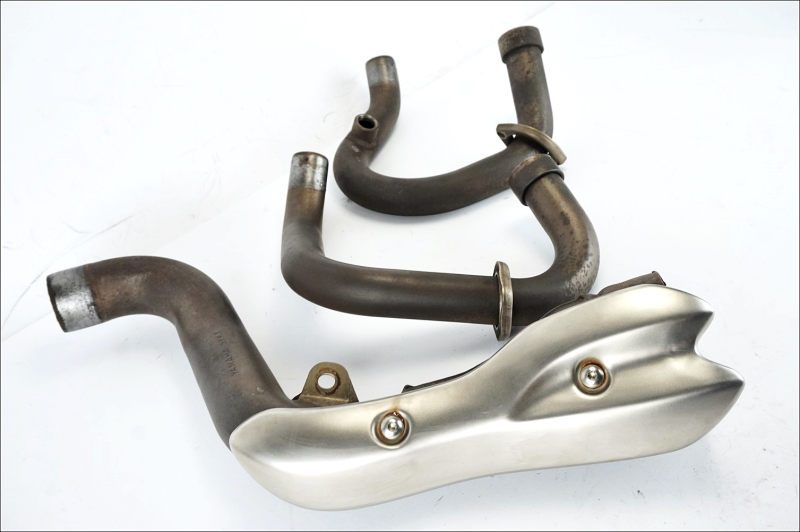

Products intact with signs of use, complete with the relative heat shield and fastening straps

________________________________________
N.b.
All codes relating to the item advertised are visible in the photos in the ad,
we do not use sample images, what is visible in the photo reflects reality

Fast Shipping

---
