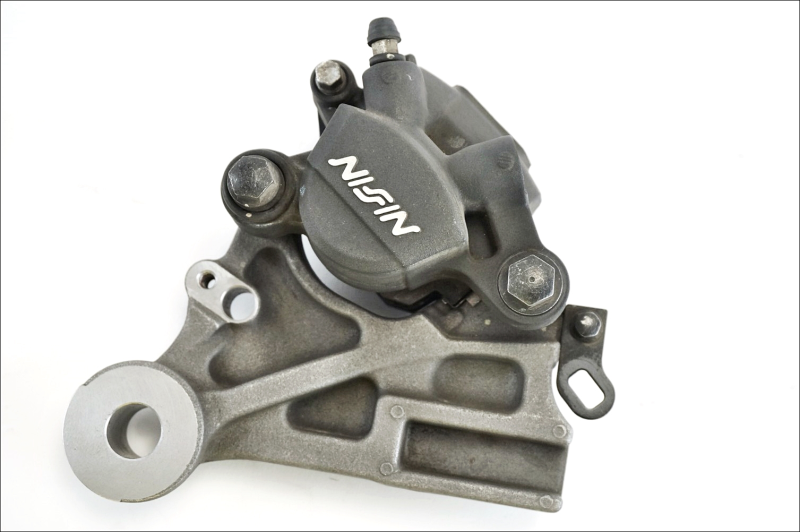

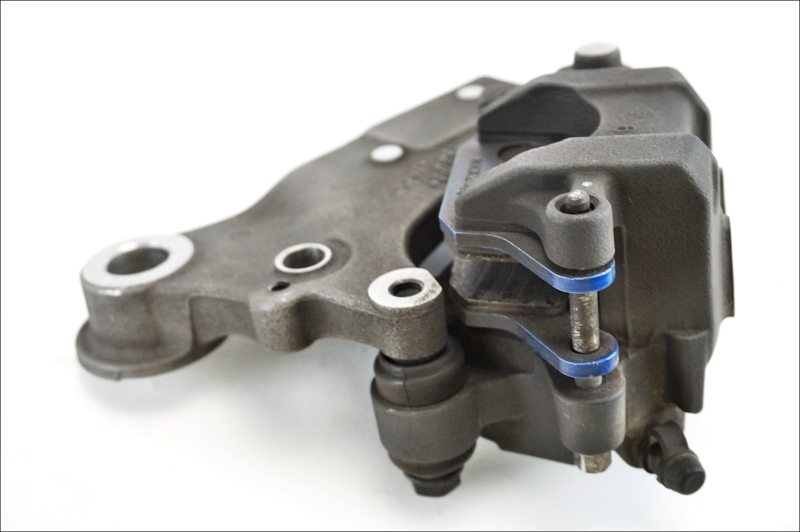

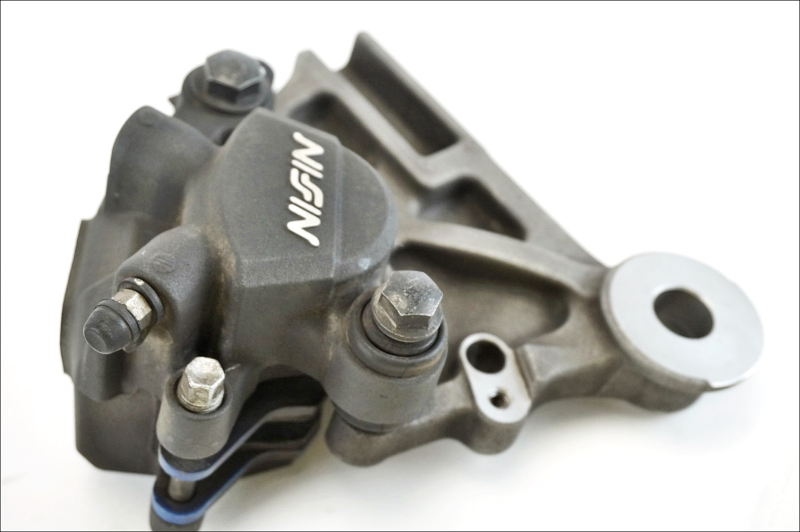

Rear caliper with original bracket HONDA CB 500 F 22 23

Vehicle Data Sheet
________________________________________
• TYPE: Naked
• BRAND: Honda
• MODEL: CB 500 F
• DISPLACEMENT: 471 cc
• YEAR OF 1ST REGISTRATION: 2023
• APPLICATION: 2022-2023
• CHASSIS CODE: MLHPC63A3N5205963
• ENGINE CODE: PC62E
• KM: 18,740 (recorded by the instrumentation installed on the vehicle during disassembly)
• KW: 35 kW

Product Data Sheet
________________________________________
• CONDITION: Used
• DEFECTS TO REPORT: Signs of wear
• SPECIAL CONDITIONS: None
• BRAND: Original Nissin
Material: Aluminum

Mounting hole diameter: 7mm
Distance between mounting holes from center hole to center hole: 9.9cm
Rear axle hole diameter: 17mm
ABS sensor mounting hole diameter: 11mm
Oil pipe pin thread diameter: 10mm
Caliper part number: 5A22N23
Bracket part number: MKA N 3

Product intact and complete with brake pads
________________________________________
N.B.
BOLTS AND FIXINGS NOT INCLUDED IF NOT VISIBLE IN THE PHOTOS
All part numbers for the item listed are visible in the photos.
We do not use sample images; what is visible in the photos reflects the actual item.
