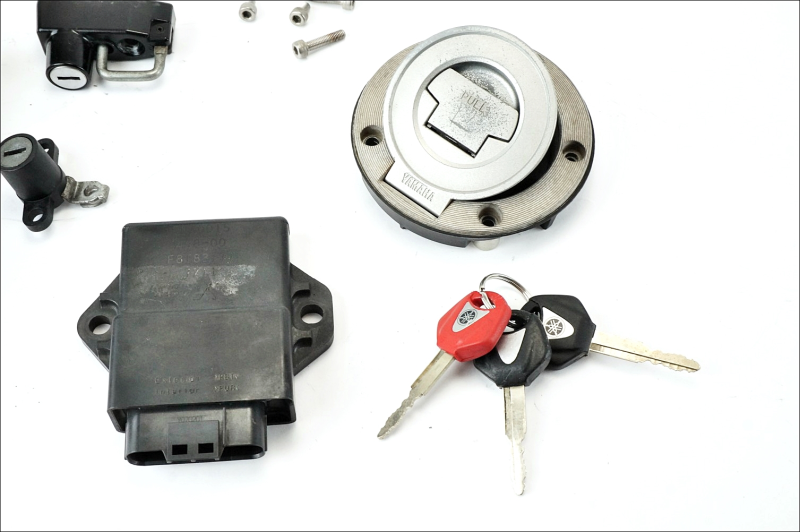

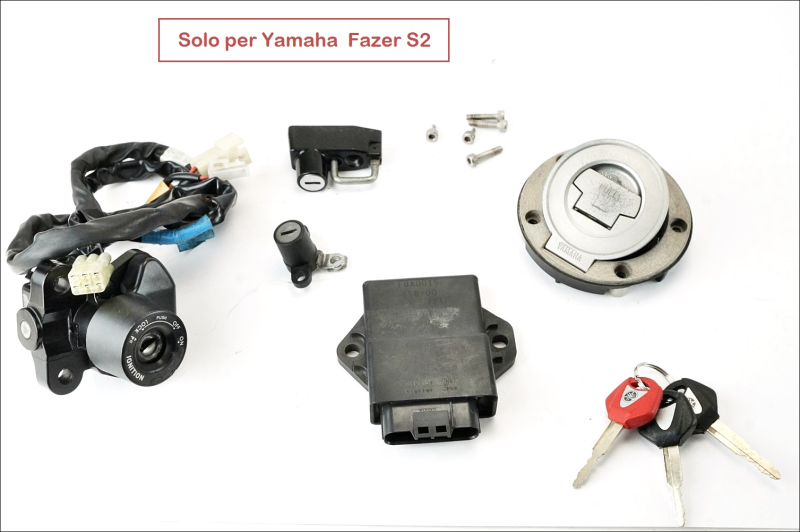

Yamaha Fazer S2 Original ignition switch with seat lock, fuel cap, control unit, and immobilizer antenna

Vehicle Data Sheet
________________________________________
• TYPE: Naked
• BRAND: Yamaha
• MODEL: FZ6 Fazer S2
• DISPLACEMENT: 600 cc
• YEAR OF 1ST REGISTRATION: 2009
• APPLICATION: 2006-2011
• FRAME CODE: JYARJ142000014264
• ENGINE CODE: YAMAHA
• KM: 27,206 (recorded by the instrumentation installed on the vehicle during disassembly)
• KW: 72 kW

Product Data Sheet
________________________________________
• CONDITION: Used
------------------
• DEFECTS TO REPORT: Signs of wear.
• SPECIAL CONDITIONS: Only for Yamaha Fazer S2
• BRAND: Original
• MATERIAL: Aluminum, plastic, and copper
________________________________________

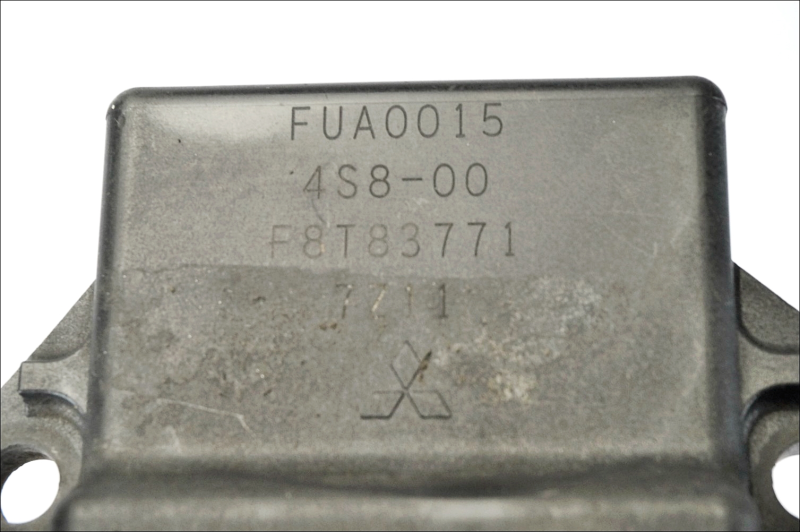

Control unit
Diameter of mounting holes: 9mm
Distance between mounting holes, center to center: 8.5cm
1 black 34-pin plug
Code: FUA0015 4S8-00 F8T83771

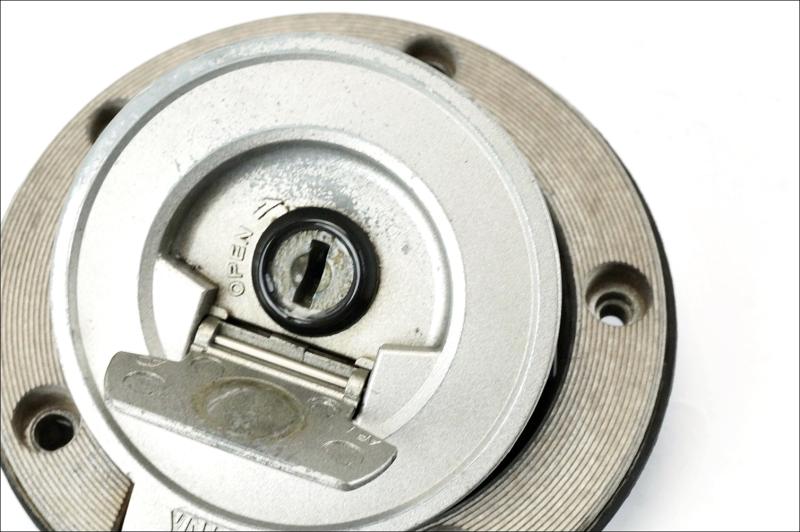

Fuel cap:
Brand: AD
Outer diameter: 10.5cm
Inner diameter: 7.5cm
Thread diameter of mounting pins: 5mm
Distance between mounting pin threads, center to center: 5cm
Code: AD E 3

Seat lock:
Diameter of lock hole: 20mm
Diameter of lock fixing holes: 6mm
Distance between mounting holes, center to center: 5cm
Code: AD E 3

Seat lock:
Diameter of lock hole: 20mm
Diameter of lock fixing holes: 6mm
Distance between mounting holes, center to center: 5cm Center-to-center distance: 3.5cm

Key contact block with immobilizer antenna:
Brand: MORIC
Mounting hole diameter: 8mm
Distance between fixing threads from center-to-center: 5.3cm
Ignition cable length: approximately 63cm with one 6-pin transparent plug, one 2-pin transparent plug, and one 1-pin transparent plug
Antenna cable length: approximately 68.5cm with one 6-pin transparent plug
Antenna code: 5SL-00 1B3005Y1247A

2 original coded black keys + 1 original coded red master key

Product with signs of use and slight discoloration
________________________________________
N.b.
HARDWARE AND FIXTURES NOT INCLUDED UNLESS VISIBLE IN PHOTOS
All item codes are visible in the photos.
We do not use sample images; what is visible in the photos reflects the actual item.
