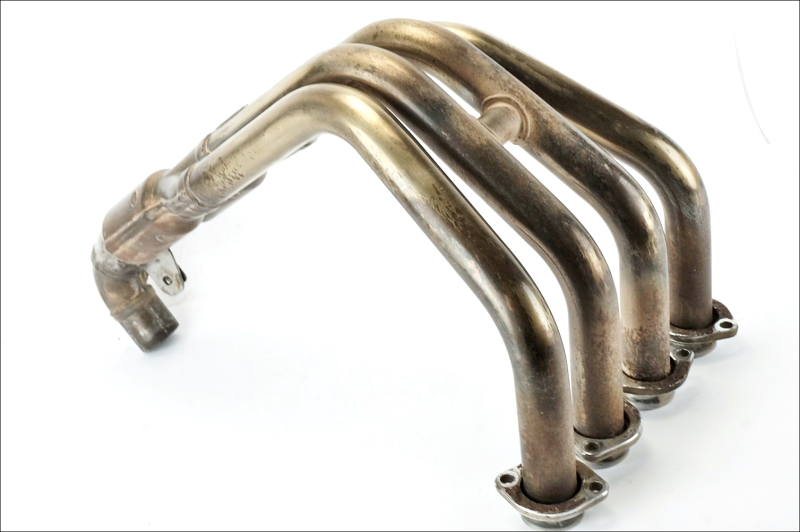

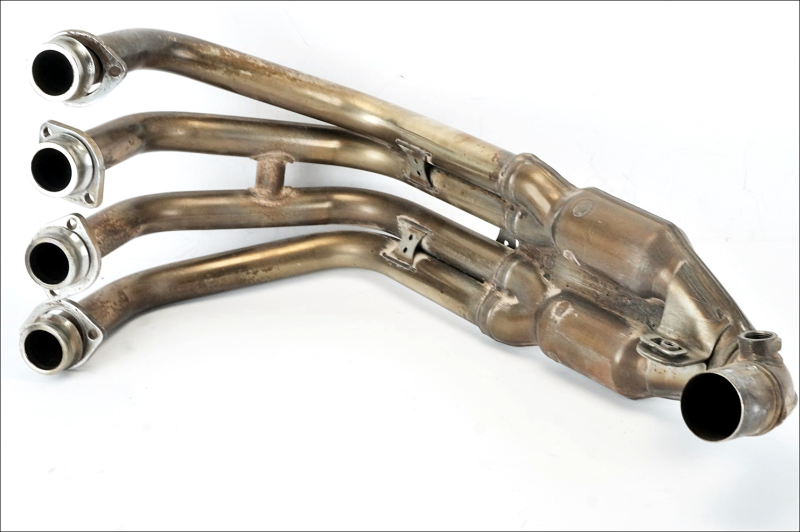

Yamaha FZ6 Fazer S2 Original exhaust manifolds

Vehicle Data Sheet
________________________________________
• TYPE: Naked
• BRAND: Yamaha
• MODEL: FZ6 Fazer S2
• DISPLACEMENT: 600 cc
• YEAR OF 1ST REGISTRATION: 2009
• APPLICATION: 2006-2011
• FRAME CODE: JYARJ142000014264
• ENGINE CODE: YAMAHA
• KM: 27,206 (recorded by the instrumentation installed on the vehicle during disassembly)
• KW: 72 kW

Product Data Sheet
________________________________________
• CONDITION: Used
------------------
• DEFECTS TO REPORT: Signs of wear

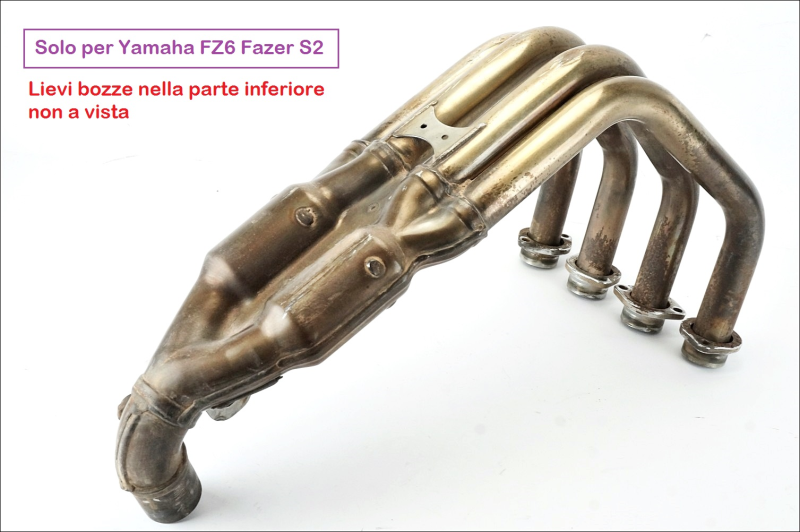

• SPECIAL CONDITIONS: Only for Yamaha FZ6 Fazer S2. Minor dents on the hidden underside.
• BRAND : Original
• MATERIAL: Stainless steel
________________________________________
External inlet diameter: 42mm
Internal inlet diameter: 33mm
Internal outlet diameter: 42mm
External outlet diameter: 45mm
Diameter of front manifold mounting holes: 9mm
Distance between front manifold mounting holes from center hole to center hole: 6cm
Diameter of rear manifold mounting hole: 7mm
Lambda sensor thread diameter: 16.54mm

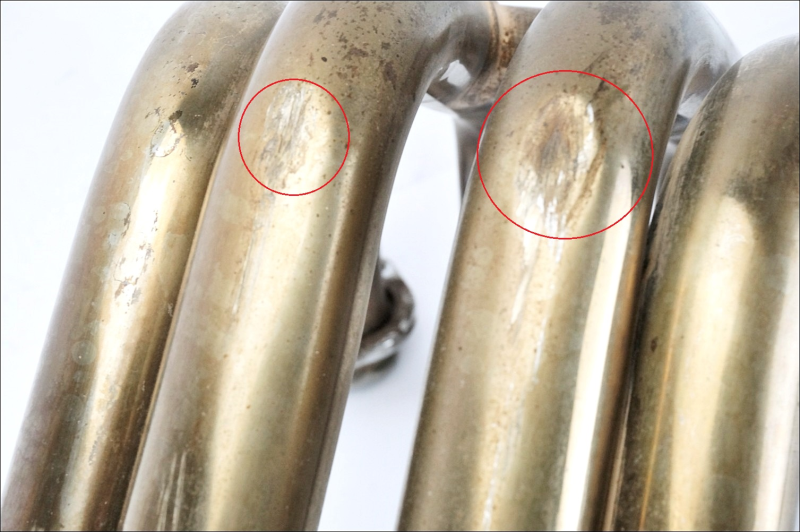

Product shows signs of use, slight dents on the hidden bottom part
________________________________________
N.B.
BOLTS AND FIXINGS NOT INCLUDED IF NOT VISIBLE IN THE PHOTOS
All the part numbers for the item are visible in the photos in the ad.
We do not use sample images; what is visible in the photos reflects the actual item.
